Surge Tracker™ AP Panel Protection

Surge Tracker Brochure Download

SurgeTrackerGroup3

ST1

Surge Tracker™ ST1 - Whole House Residential Surge Protection



  • NEMA 4X exterior rated enclosure
  • Industry leading let-through voltage performance
  • 50 kA per phase
  • LED failure indicator
  • Threaded NPT hub and locknut
  • UL 1449 Safety Listing
  • 5 Year Limited Warranty
  • Available for split phase 120/240 V for US residential applications

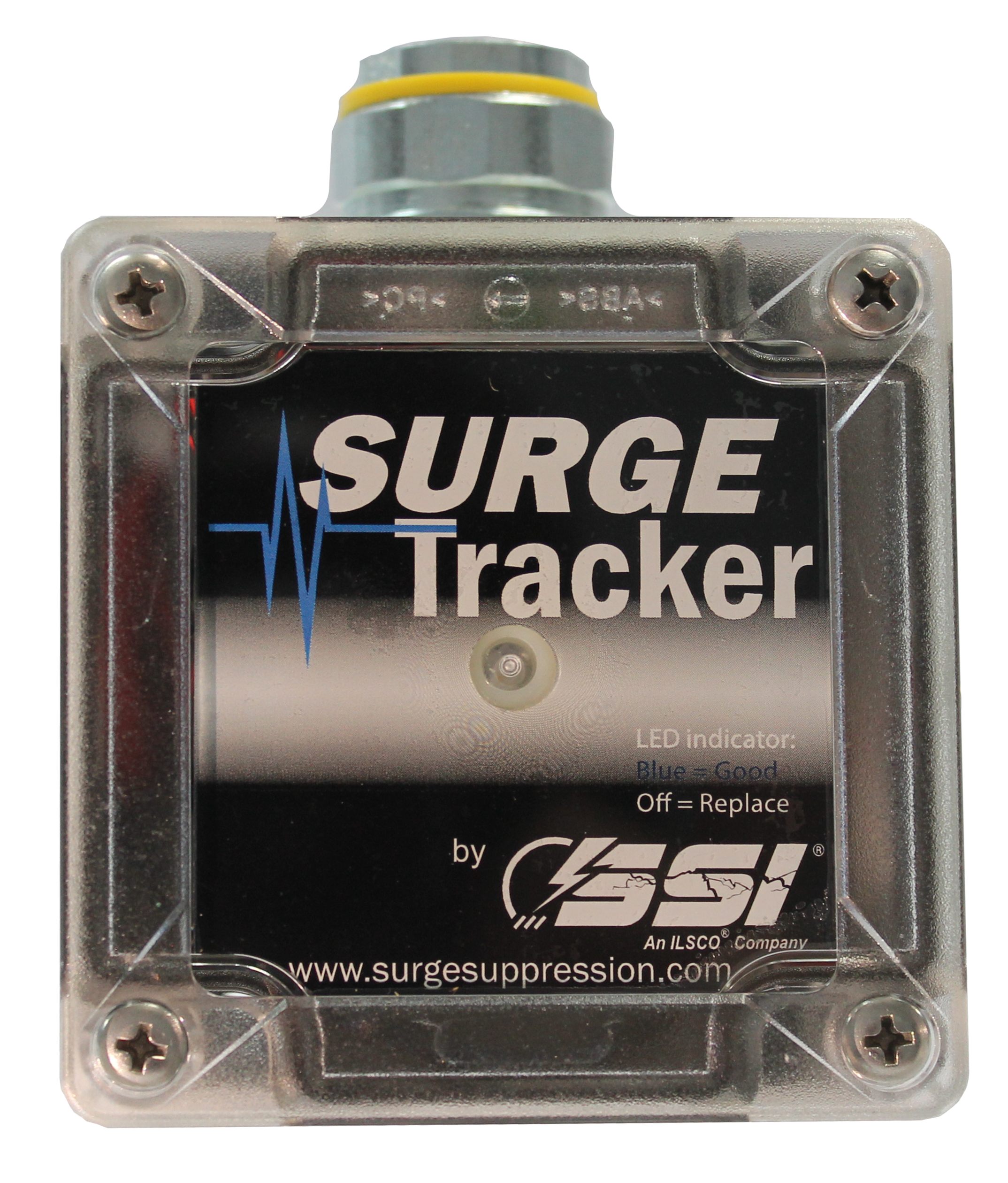

ST2

Surge Tracker™ ST2 - Whole House Residential and Light Commercial Surge Protection



  • NEMA 4X exterior rated enclosure
  • Industry leading let-through voltage performance
  • 50 kA per phase
  • LED failure indicator
  • Rigid, watertight metal hub
  • UL 1449 Safety Listing
  • 5 Year Limited Warranty
  • Optional advanced electrical noise filter (UL 1283)
  • Available for 120 V single phase, 120/240 V split phase and 120/208 WYE 3 phase voltage configurations
ST3

Surge Tracker™ ST3 Commercial / Industrial Grade Surge Protector for your facility's service entrance.



  • NEMA 4X exterior rated enclosure
  • Industry leading let-through voltage performance
  • Available in either 50 kA or 100 kA peak surge current
  • LED failure indicator
  • Rigid, watertight metal hub
  • UL 1449 safety rating
  • Optional advanced electrical noise filter (UL 1283)
  • Optional audible alarm and dry relay contacts
  • 5 Year Limited Warranty
  • Common Application: Service Entrances
ST4

Surge Tracker ST4 Commercial / Industrial grade surge protection for sub panels and locations downstream of your service entrance



  • NEMA 4X exterior rated enclosure
  • Industry leading let-through voltage performance
  • Available in either 100 kA or 200 kA
  • LED failure indicator for each phase
  • Rigid, watertight metal hub
  • UL 1449 safety listing
  • Optional advanced electrical noise filter (UL 1283)
  • Optional audible alarm and dry relay contacts
  • Common Applications: Main Panels and Branch Panels

Both the ST3 and ST4 are available in the following voltage configurations:


  • Single Phase 120 V
  • Single Phase 220/277 V
  • Split Phase 120/240 V
  • Two Phase 120 V
  • Two Phase 240 V
  • Three Phase 480 V Delta
  • Three Phase 600 V Delta
  • Three Phase 120/308 V Wye
  • Three Phase 277/480 V Wye
  • Three Phase 347/600 V Wye
  • Three Phase High Leg Delta
